MAIN TECHNICAL SPECIFICATION

• Mode: NCA-FA
• Air Volume: 2 – 24,500 cfm
• Maximum SP: 3.5″ wg. @ standard air density

FEATURES & BENEFITS

• A wide variety of motors are available to meet specific application needs.
• Heavy duty construction, durable and weather resistant.
• Non-overloading backward inclined wheels, blades and inlets fabricated from aluminum.
• Wall mount applications, units up to 24″ nominal wheel can be wall mounted.
• Forced fresh air through the motor compartment cools motor and ensures long motor life.
• Quick release latches allow for easy access to motor compartment.
• Variable pitch motor pulley allows for field adjustment and system balancing.
• High efficiency combined with low tip speeds result in quiet operation.
• Standard emergency disconnect switch.

OPTIONS

• Gravity Damper. (UL 705 Only)
• Motorized Damper. (UL 705 Only)
• Wall Mount Sleeve.

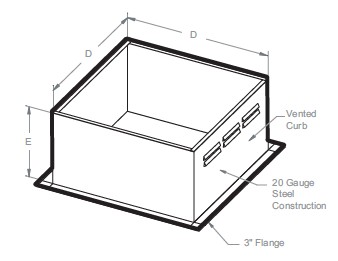

• Roof Curb. (Vented & Non-Vented)
• Grease Collection Box.
• Bird Screen. (UL 705 Only)
• Base Hinging Kit or Hinged Sub Base. (for NFPA96 compliance)
• Extra Set of V-Belts
• Combination package that includes a supply fan mounted on the same roof curb.
