MAIN TECHNICAL SPECIFICATION

• Mode: DU-HFA
• Air Volume: 2 – 24,500 cfm
• Maximum SP: 3.5″ wg. @ standard air density

FEATURES & BENEFITS

• Completely enclosed drive compartment protects motor from airborne contaminants
• Forced fresh air through the motor compartment cools motor and ensures long motor life
• Variable Speed Control on Single Phase Units Only. (VFDs required to adjust speed for 3 phase versions)
• Non-overloading backward inclined wheels, blades and inlets fabricated from aluminum
• Units up to 24″ nominal wheel can be wall mounted
• Quick release latches allow for easy access to motor compartment. (Size 12 & larger)
• Standard emergency disconnect switch (Size 12 & larger)

OPTIONS

• Gravity Damper. (UL705 Only)
• Motorized Damper. (UL705 Only)
• Wall Mount Sleeve.

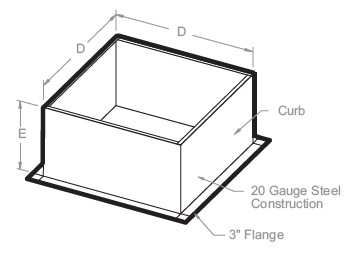

• Roof Curb. (Vented and Non-Vented)
• Grease Collection Box. (Size 12 & larger)
• Bird Screen. (UL705 Only)
• Base Hinging Kit or Hinged Sub Base. (for NFPA96 compliance)
• Combination package that includes a supply fan mounted on the same roof curb.
