BI Series Belt Drive Utility Blowers
DETAILS
- Complete range of sizes from 10″ to 36″.
- Full AMCA Class 1 Operation.
- Non-overloading backward inclined (BI) welded wheels.
- Aluminum wheel – (AMCA type B classification for spark resistant construction) – available as an option.
- Discharge position can be field rotated to any of 8 discharge positions.
- Counter clock wise rotation is standard. Clock wise available.
- Outlet flanges on models BI-24 to BI-36.
- Temperature Ratings – without a heat slinger 250º F with a heat slinger, steel wheel 400º F, aluminum wheel 300º F.
- Motor access from 3 sides.
- Sloped motor base for ease of motor installation.
- Vented motor and drive compartment cover, with handles, for safety & weather protection.
- 16 gauge or heavier blower housing.
- Heavy duty pillow block ball bearings.
ACCESSORIES
- V-Cap
- Bolted Clean Out Door
- Heat Slinger
- Vibration Isolators
- Shaft Seal
- Corrosion Resistant Coating
- Aluminum Wheel
- Backdraft Dampers
- Inlet & Outlet Screens
- 2″ Drain Fitting
Category:
Utility BlowersSub-Category:
Tags:
Product Inquiry Form

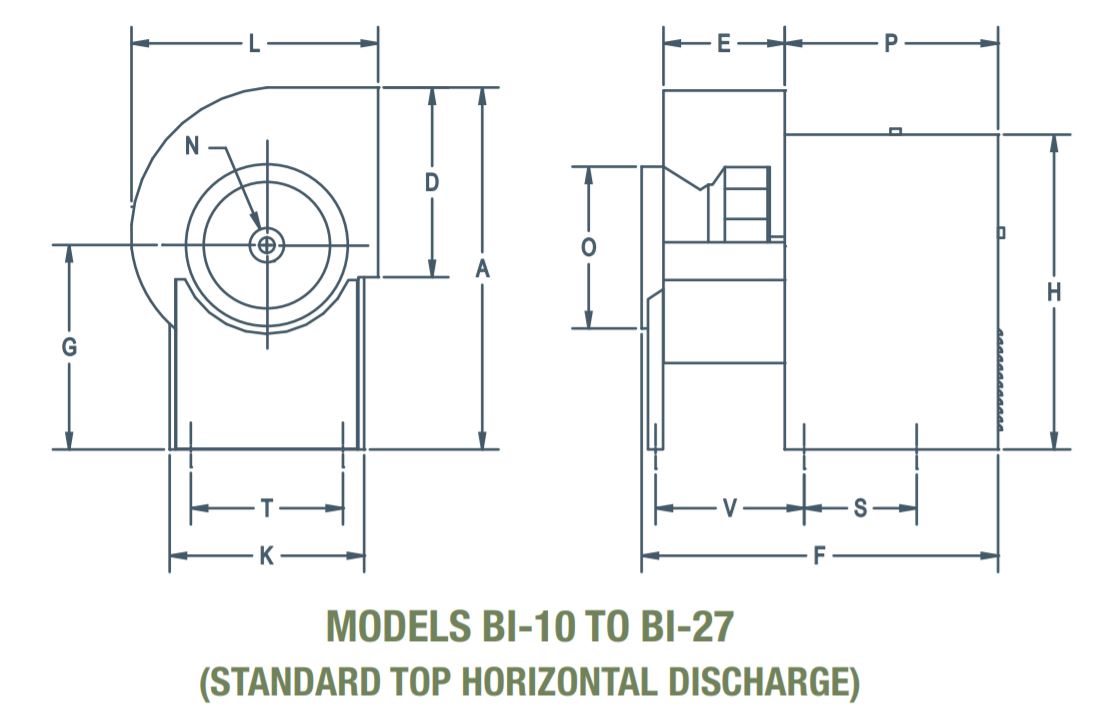

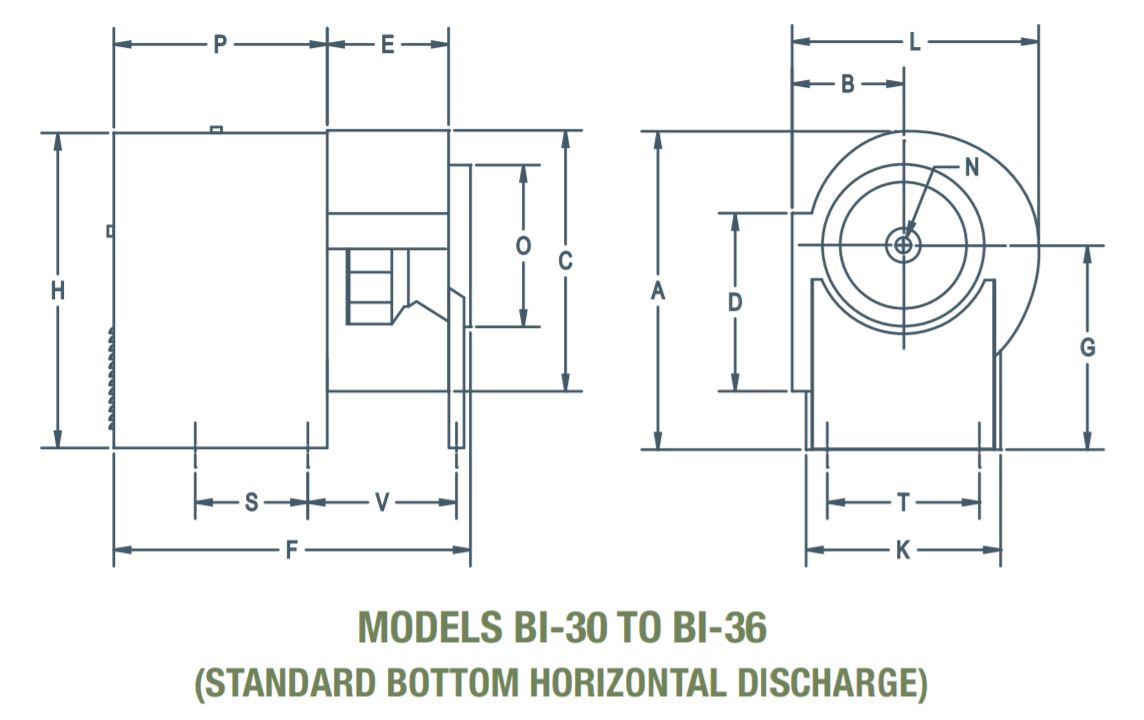

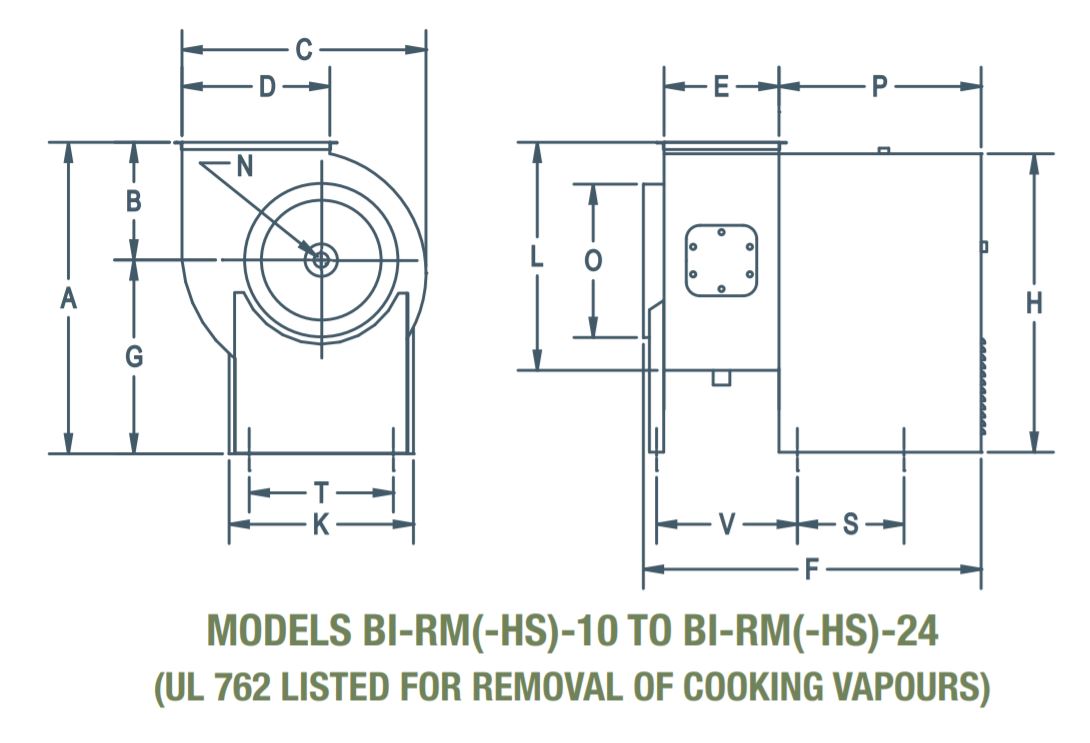

| MODEL | MAX CFM | Max HP | A (BI MODELS) | A (BI-RM MODELS) | B | C | D | E | F | G | H | K (CABINET WIDTH) | L | N | O | P | S | T | V | WEIGHT (lbs) without motor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BI-10 | 2300 | 2 | 26 3/4" | 23 5/8" | 8 3/8" | 19 3/16" | 11 5/16" | 8 1/4" | 27 3/4" | 15 5/6" | 21 5/16" | 13 1/4" | 17 1/2" | 3/4" | 11" | 17 1/4" | 11 5/8" | 11 1/4" | - | 78 |
| BI-12 | 3200 | 3 | 33 3/16" | 30 3/16" | 9 15/16" | 27 7/16" | 13 1/16" | 9 7/8" | 33 5/16" | 20 3/16" | 29 1/8" | 16 3/4" | 20 9/16" | 1" | 12 7/16" | 21 3/16" | 11 1/2" | 14 3/4" | 13 1/16" | 112 |
| BI-13 | 3900 | 5 | 34 1/2" | 30 15/16" | 10 3/4" | 24 1/2" | 14 3/8" | 10 3/4" | 34 1/4" | 20 3/16" | 29 1/8" | 16 3/4" | 22 7/16" | 1" | 14 3/8" | 21 1/4" | 11 1/2" | 14 3/4" | 14" | 134 |
| BI-15 | 4775 | 5 | 35 15/16" | 31 15/16" | 11 3/4" | 27 1/4" | 15 13/16" | 12 3/4" | 36 1/4" | 20 3/16" | 29 1/8" | 16 3/4" | 24 7/8" | 1" | 15 7/8" | 21 3/16" | 11 1/2" | 14 3/4" | 16" | 140 |
| BI-16 | 5700 | 7 1/2 | 39 7/16" | 34 11/16" | 12 11/16" | 29 15/16" | 17 1/2" | 13 1/8" | 36 5/8" | 22" | 30 15/16" | 16 3/4" | 26 15/16" | 1 3/16" | 17 3/8" | 21 1/4" | 11 1/2" | 14 3/4" | 16 1/2" | 162 |
| BI-18 | 6175 | 7 1/2 | 41 5/16" | 35 7/8" | 13 13/16" | 33 3/16" | 19 3/8" | 14 1/2" | 38 1/4" | 22" | 30 15/16" | 16 3/4" | 29 9/16" | 1 3/16" | 19 3/8" | 21 1/2" | 11 1/2" | 17 3/4" | 17 7/8" | 172 |
| BI-20 | 8400 | 7 1/2 | 49 3/16" | 42 15/16" | 14 15/16" | 36 7/16" | 21 3/16" | 15 3/4" | 46 3/8" | 28" | 40 15/16" | 25 1/8" | 32 3/16" | 1 3/16" | 21 1/4" | 27 5/8" | 14 9/16" | 22 3/4" | 19 3/4" | 289 |
| BI-22 | 10000 | 10 | 51 9/16" | 44 3/8" | 16 3/8" | 40 7/16" | 23 9/16" | 17 3/4" | 48 7/16" | 28" | 40 15/16" | 25 1/8" | 35 9/16" | 23" | 23 5/8" | 27 5/8" | 14 9/16" | 22 3/4" | 21 13/16" | 322 |
| BI-24 | 11100 | 15 | 58 3/16" | 49 15/16" | 17 15/16" | 44 11/16" | 26 1/8" | 19 3/8" | 51 5/16" | 32 1/8" | 46 11/16" | 28 15/16" | 39 1/8" | 1 7/16" | 26" | 28 15/16" | 18 5/16" | 26 3/8" | 23 3/8" | 385 |
| BI-27 | 15250 | 15 | 60 11/16" | 51 1/2" | 19 1/2" | 49" | 28 11/16" | 21 1/4" | 53 1/8" | 32 1/8" | 46 11/16" | 28 15/16" | 42 13/16" | 1 7/16" | 28 5/8" | 28 7/8" | 18 5/16" | 26 3/8" | 25 1/4" | 411 |
| BI-30 | 18000 | 15 | 65 15/16" | 68 3/16" | 24 7/8" | 54 1/2" | 31 7/8" | 23 5/8" | 58 5/8" | 43 5/16" | 65 5/16" | 44 5/16" | 50 15/16" | 1 11/16" | 31 3/4" | 32" | 17" | 40" | 29" | 517 |
| BI-33 | 22500 | 20 | 68 3/16" | 68 5/8" | 25 3/8" | 58 15/16" | 34 7/8" | 25 15/16" | 60 15/16" | 43 5/16" | 65 5/16" | 44 5/16" | 53 7/8" | 1 11/16" | 35" | 32" | 17" | 40" | 31 5/16" | 607 |
| BI-36 | 27000 | 25 | 70 7/8" | 69" | 25 1/2" | 66 3/16" | 38 9/16" | 28 11/16" | 63 11/16" | 43 5/16" | 65 5/16" | 44 5/16" | 56 15/16" | 1 15/16" | 38 3/4" | 32" | 17" | 40" | 34 1/16" | 747 |
